Solid Wood Folding Windows (FWWS.66)
Explore Solid Wood Folding Windows (FWWS.66) for custom window schedules. Compare the photographs, frame construction and available options before requesting project pricing.
Made to order. Price, approved dimensions and lead time are confirmed in the quote.
Planning this system for custom window schedules
Crafted from high-quality wood, this folding window offers a natural aesthetic with smooth operation, combining timeless beauty with modern functionality.
Solid Wood Folding Windows (FWWS.66): Panel dimensions are confirmed for the selected configuration; stile 4"; style Traditional.
Give each window an opening ID, room name and measurement convention. Decide where ventilation is needed, which windows remain fixed and whether matching frames or sightlines matter across adjacent openings.
Photography & design details
Configuration drawings and planning details

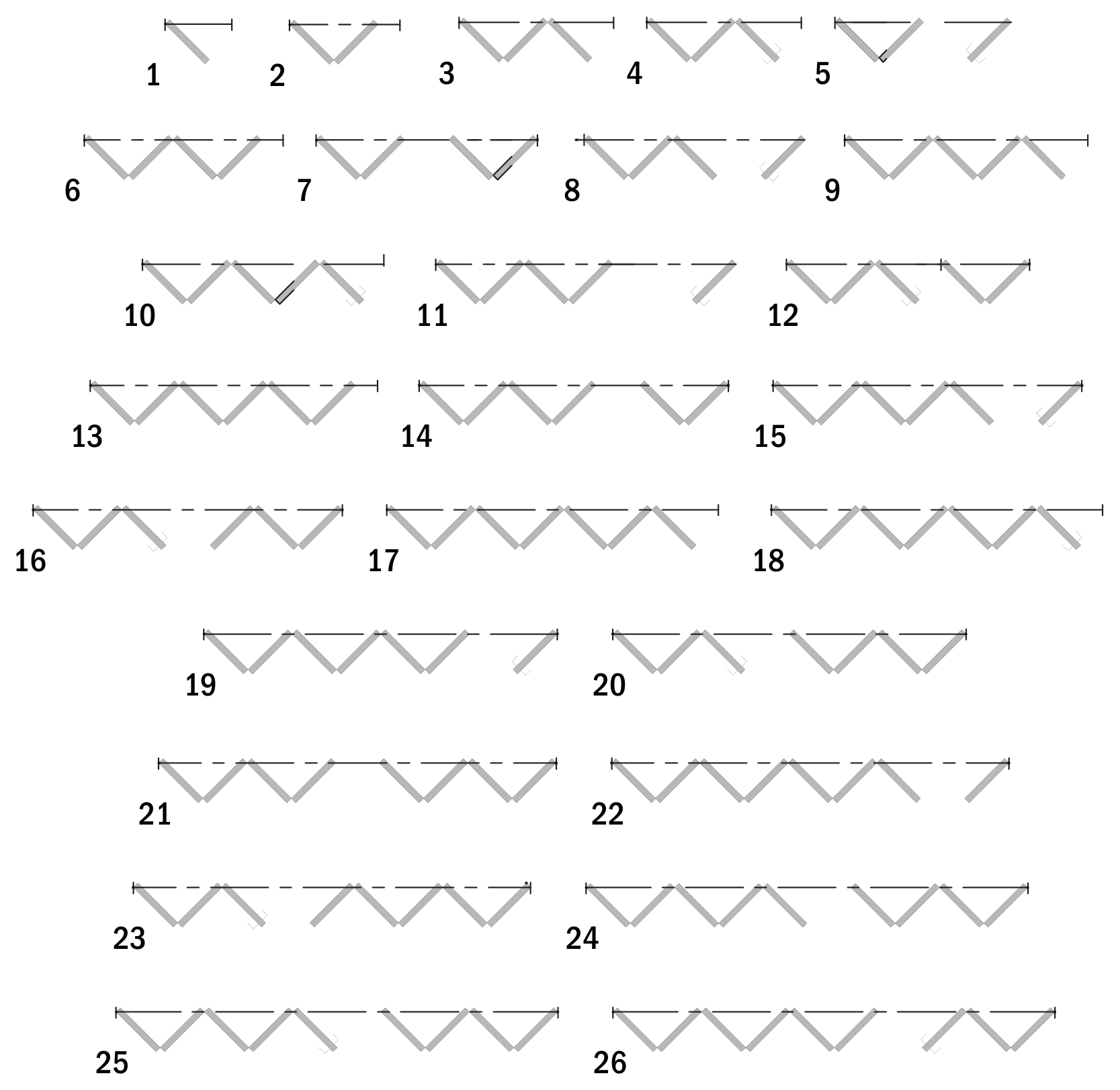

The layout diagram shows how panel groups fold to one side or divide between sides. Choose the parking location and everyday access arrangement first, then check the folded stack and handle clearance beside the opening. Panel count, frame dimensions and individual panel limits are confirmed together for the selected configuration.
Use the drawings to discuss Solid Wood Folding Windows (FWWS.66) with your installer. Final project drawings and applicable installation instructions govern the ordered assembly.
Explore the options
Options for this system. Availability and combinations are confirmed in the final quote. Screen colors do not replace physical finish samples.
Wood

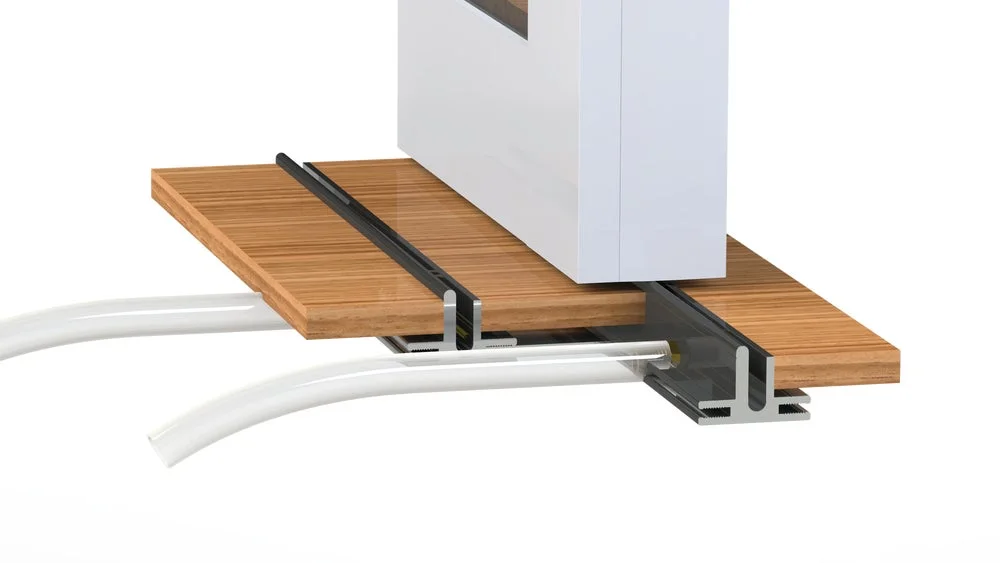

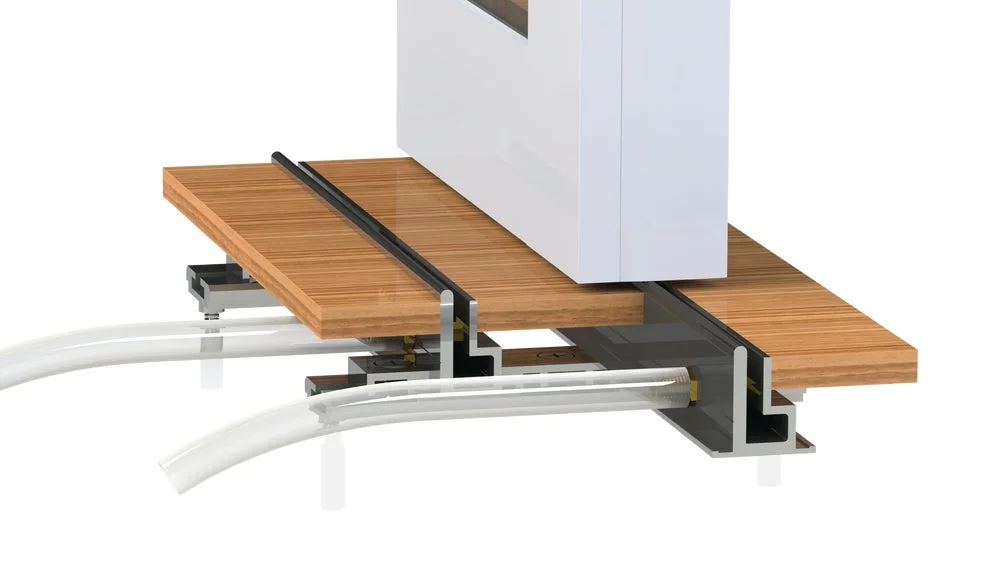

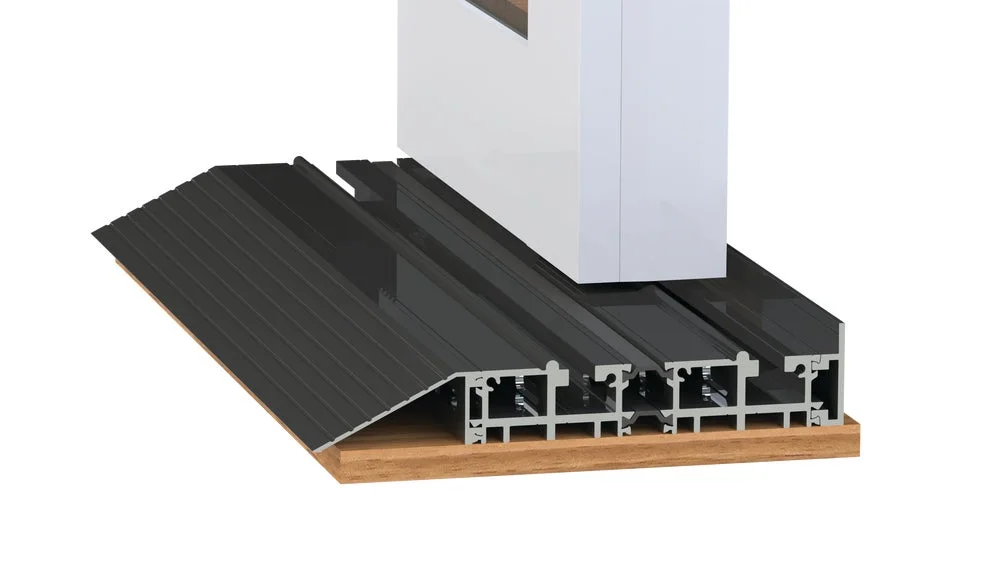

Tracks
Throw Handles
Pull Handles
Flag Handles
Glass
Divided Lites

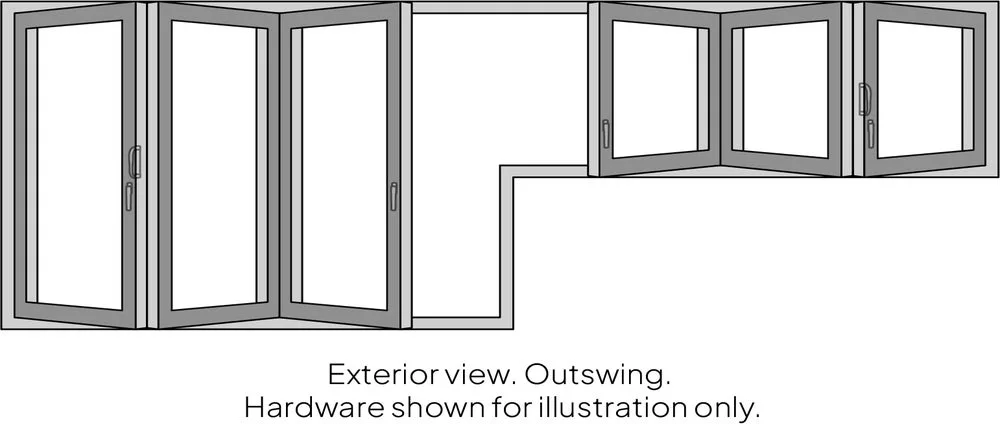

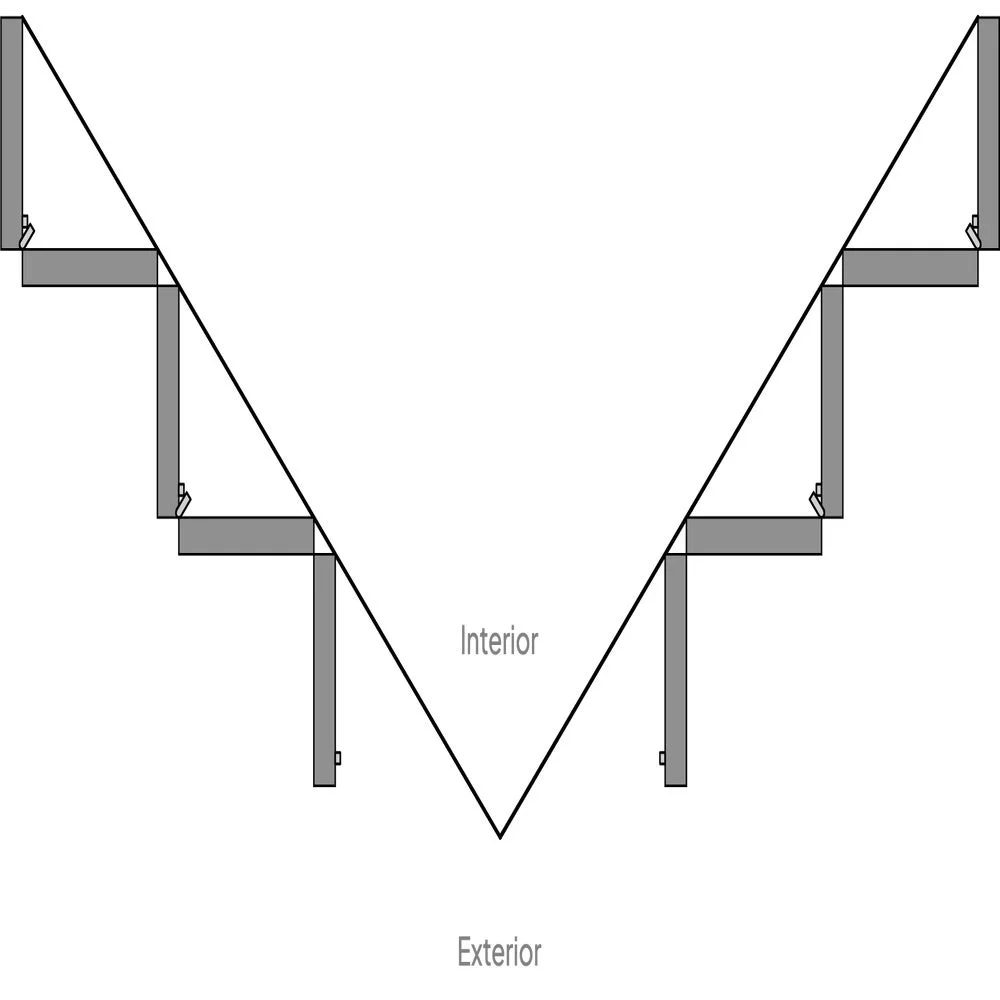

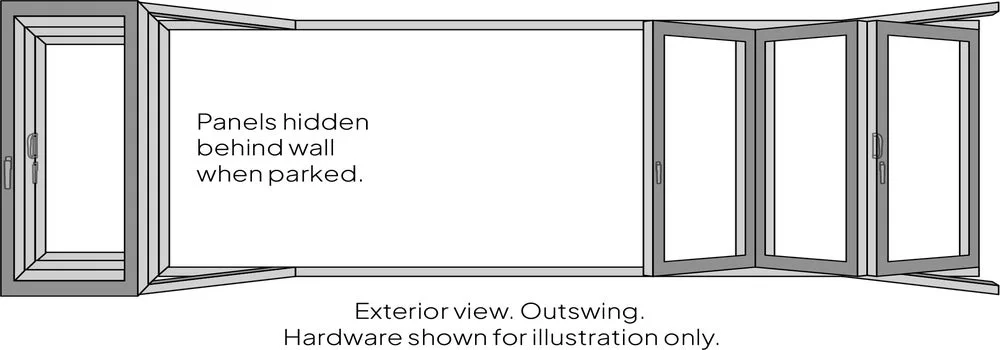

Additional Options
Configurations
Specifications & performance
Manufacturer-published values are specific to the stated system and tested configuration. Panel dimensions are not overall rough-opening dimensions. A dash means no value is supplied in that field.
Performance
- U-Factor
- -
- SHGC
- -
- Impact Rated
- -
- AAMA Tested
- -
- Design Pressure (psf)
- -
- Air Infiltration (cfm/ft2)
- -
- Water Penetration Resistance (psf)
- -
- Structural Test Pressure (psf)
- -
- Florida Approval #
- -
Specifications
- Maximum Panel Height
- Confirmed for your configuration
- Minimum Panel Height
- 36"
- Maximum Panel Width
- Confirmed for your configuration
- Minimum Panel Width
- 18"
- Maximum Panel Weight
- 10 lbs per sqft
- Panel Depth
- 2 ½"
- Maximum Number of Panels
- 16 Bipart
- Stile
- 4"
- Rail
- 4"
Design and installation planning
Give each window an opening ID, room name and measurement convention. Decide where ventilation is needed, which windows remain fixed and whether matching frames or sightlines matter across adjacent openings.
Plan the opening
Your project
Request a quote
Solid Wood Folding Windows (FWWS.66). Give each window an opening ID, room name and measurement convention. Decide where ventilation is needed, which windows remain fixed and whether matching frames or sightlines matter across adjacent openings.
Start with approximate dimensions if the opening has not been verified. This request begins project review; it is not an order or payment.
